Off-Grid Inverters

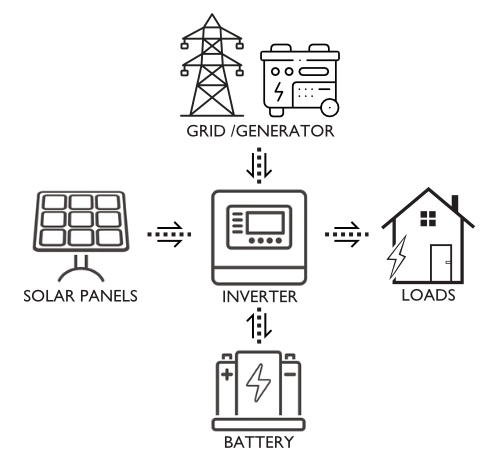

Off-Grid Inverters are versatile and can be used in a wide range of scenarios. They are not designed to export electricity to the grid, instead the energy generated from the PV panels is used to charge batteries and power loads connected directly to the inverter. The electricity grid or generator can be connected as a  backup power source depending on the situational needs.

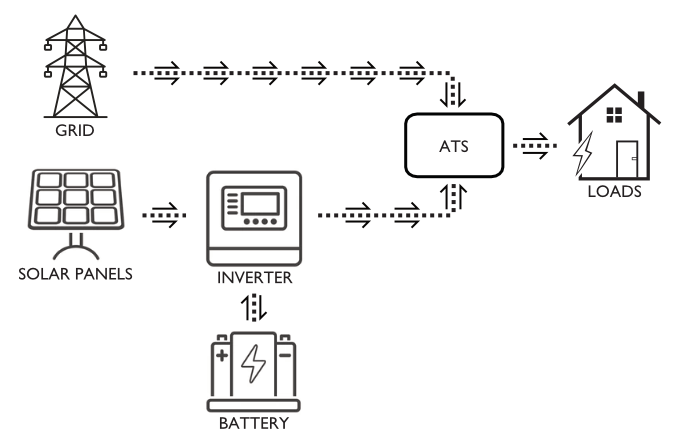

It is also possible to connect an off-grid inverter in parallel to the mains using an automatic transfer switch keeping the inverter isolated from the grid infrastructure. This means that a solar generating system can be installed without the need for permissions from the local DNO. This can be especially useful in areas where the DNO imposes restrictions on the system size which can be installed and connected to their grid infrastructure.

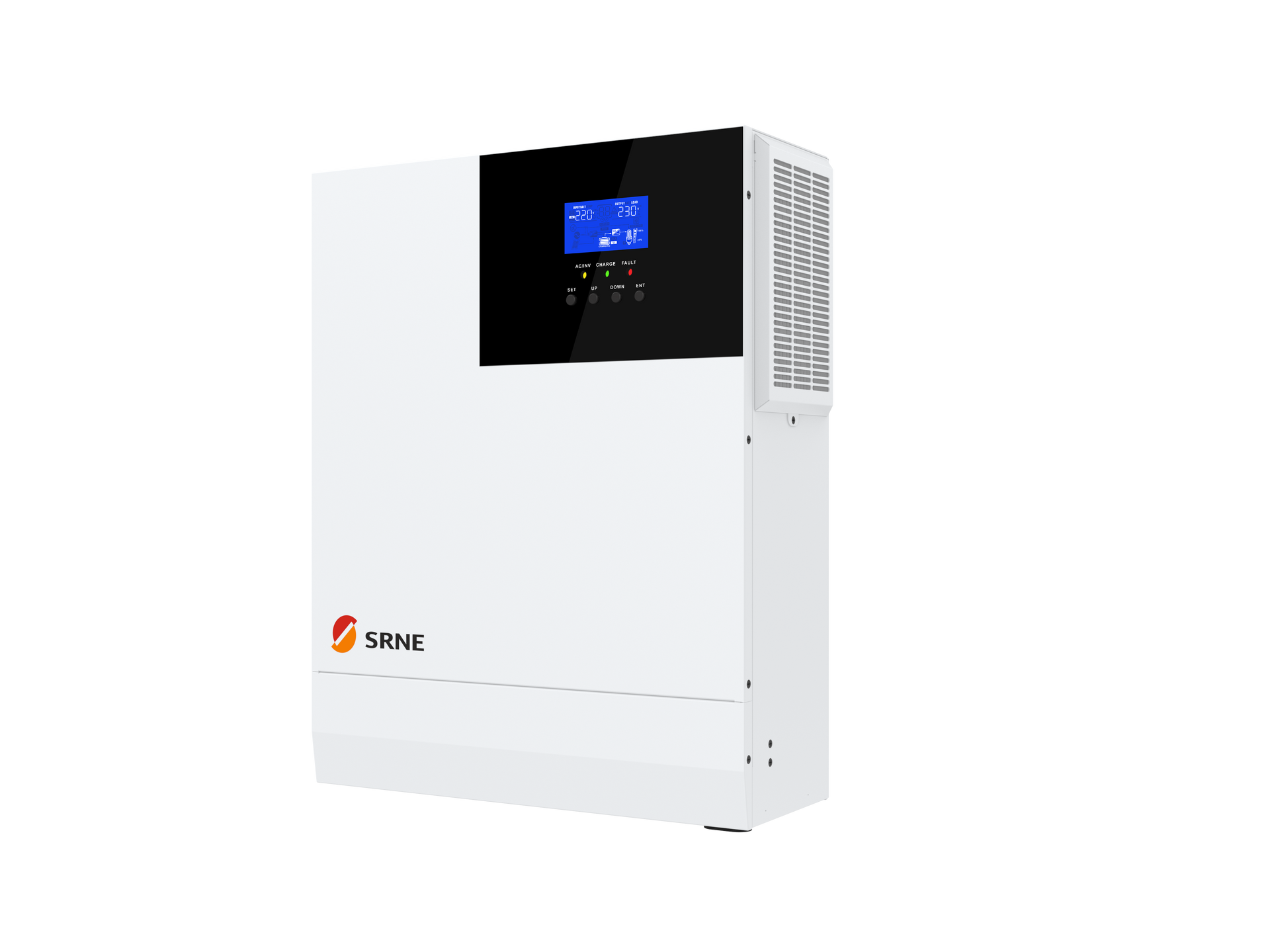

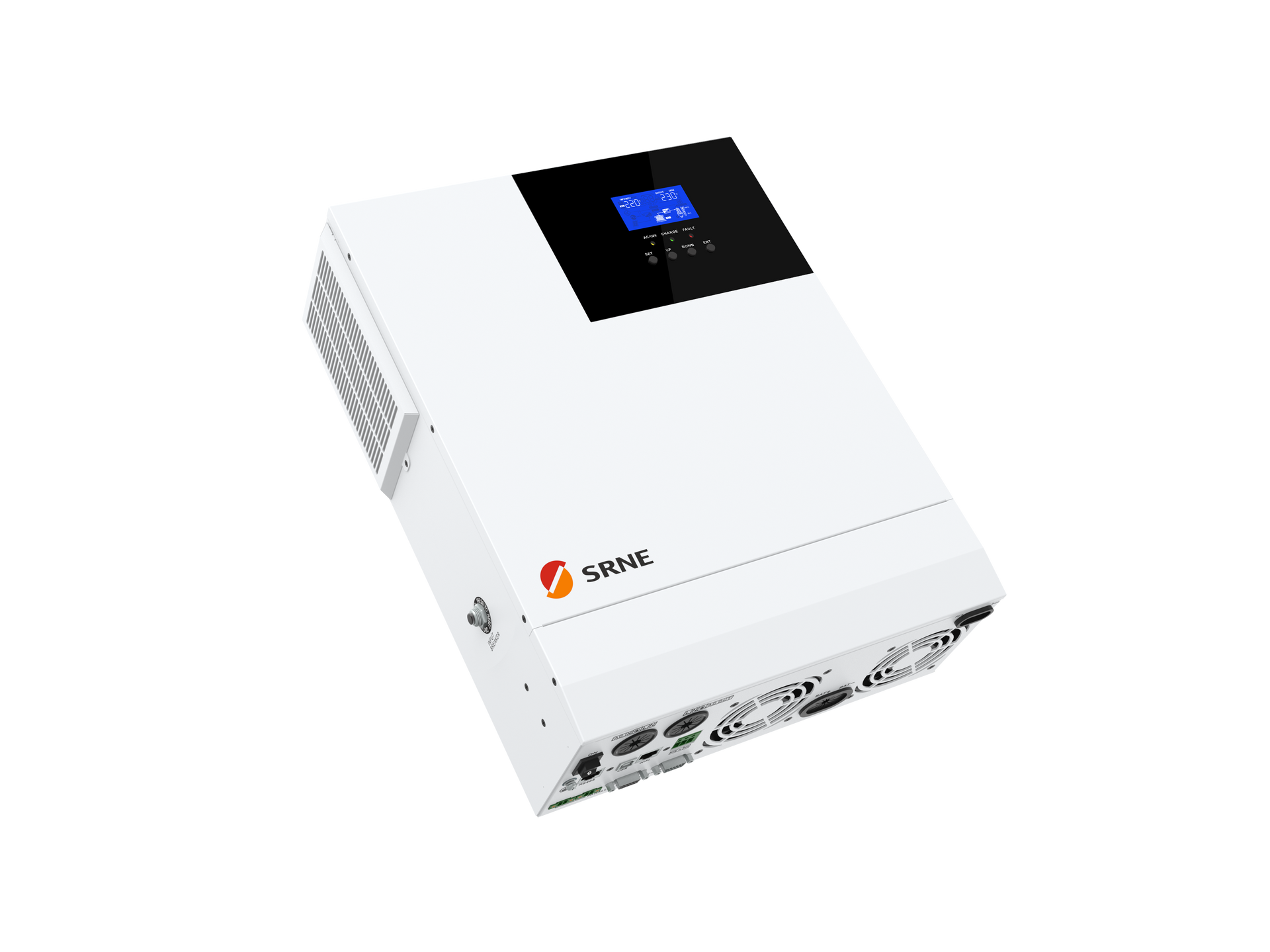

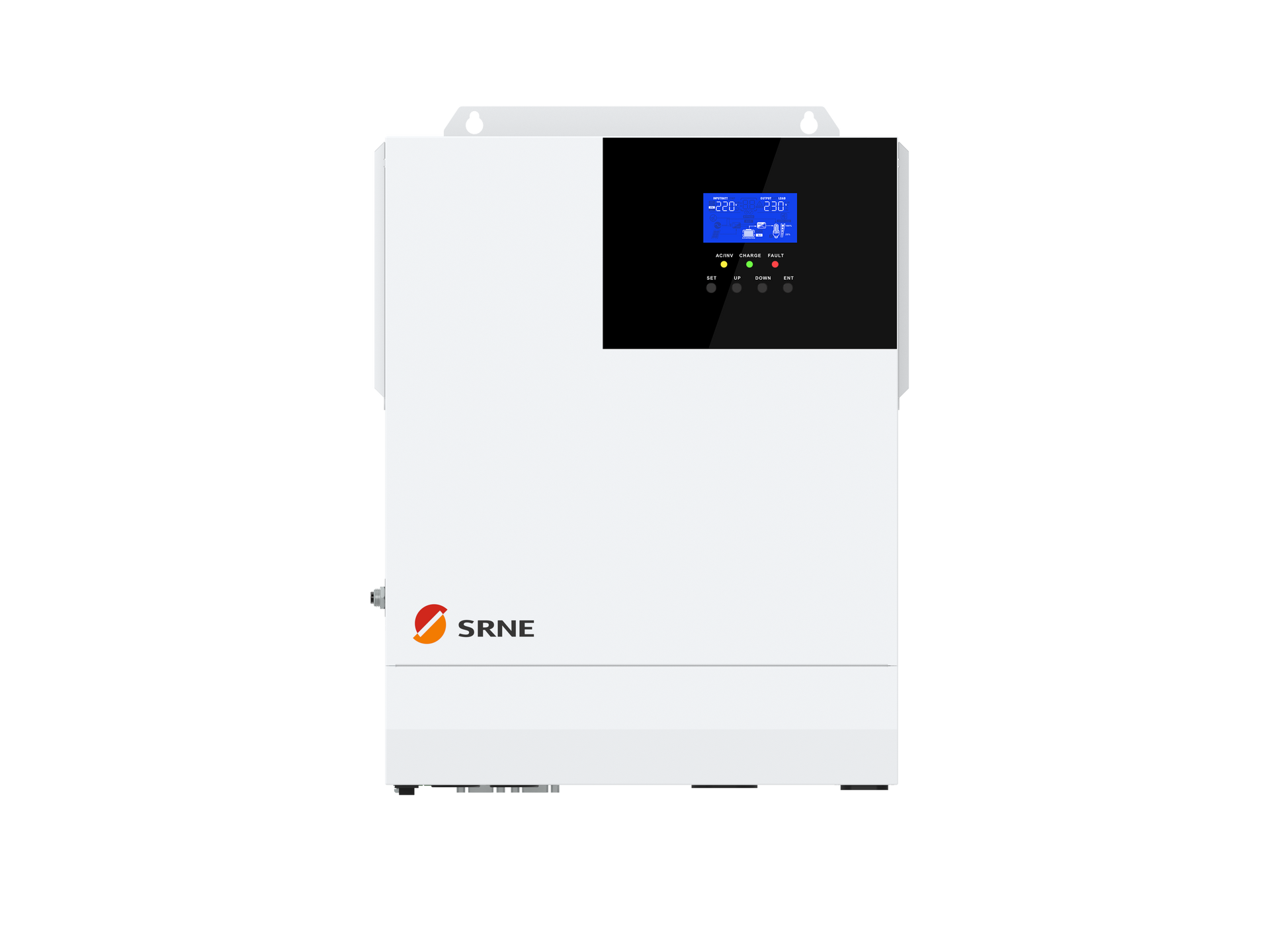

HF/HFP Series

  • Single phase output
  • Range of models;
  • 48v - 5kW
  • 24v - 3kW
  • 12v - 1kW and 1.5kW
  • Up to 6 units in parallel (48v model only)
  • High quality pure sine wave output
  • Inbuilt cooling fans

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

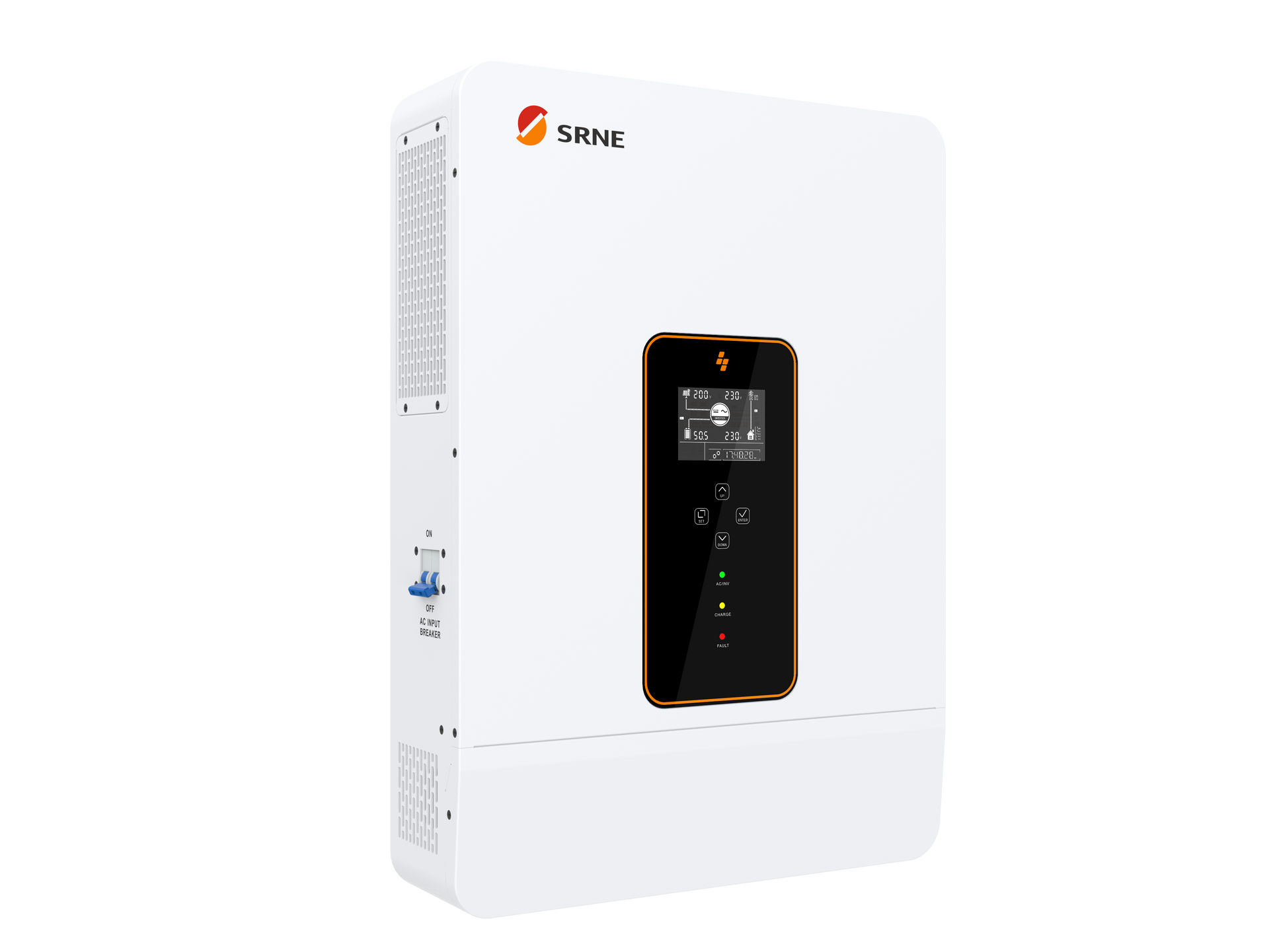

ASP Series

  • Single phase models - 8kW, 10kW
  • Three phase models - 8kW, 10kW, 12kW
  • Up to 6 units in parallel
  • 2 MPPT string inputs
  • High quality pure sine wave output
  • Inbuilt cooling fans
  • Up to 63A bypass current to supplement inverter output under high loads
  • Up to 11kWp solar input for single phase and 18kWp solar input for three phase

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
